Hammerhead Tower Crane

Hammerhead tower crane is a kind of tower crane that is widely used in building construction. With its excellent performance and wide applicability, it plays an important role in the field of building construction.



The hammerhead tower crane adopts the electrical components produced by the professional electrical factory with foreign advanced technology, which has long life, less failure, simple maintenance and reliable work. The rigid double tie rod hangs a large lifting boom, the crane arm has good rigidity, light weight, small cross-section, small wind resistance, beautiful appearance, and several variations in length to meet different construction needs; The driver's cab is independent and external, with good visibility and large internal space, creating a good working environment for the operator; The slewing limiter is adopted, which facilitates the driver to pass up and down from the middle of the tower crane; The advanced linkage table is used to operate each mechanism, which is easy to operate and simple to maintain; All kinds of safety devices are complete, and they are

mechanical or mechatronics products, which are suitable for harsh construction environments and can ensure the reliable operation of tower cranes;



The trolley anti-rope breaking device (anti-slip) and anti-shaft breaking device, lifting mechanism rope row system, traction rope tensioning system, etc. all adopt mature and reliable advanced technology at home and abroad.

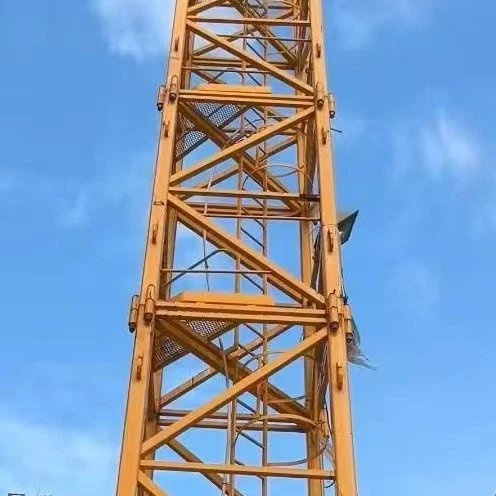

1. Tower Mast

Function: Support the main vertical structure of the whole crane and determine the height of the crane.

Composition: It is made of standard sections (standard height modules) connected by high-strength bolts or sleeves, and can be heightened section by section according to construction requirements.

Type: Divided into fixed type (consolidated with the foundation) and attached type (connected to the building by an attached wall device).



2. Crane Arm (Jib)

Function: The main working arm that extends horizontally for lifting materials.

Peculiarity:

Hammerhead design: the crane arm and the balance arm are fixed at the top of the tower, the top of the tower does not rotate, and only the boom is driven by the slewing mechanism.

Non-balance arm side: Usually a fixed length, where the hook moves.

Structure: Composed of trusses or steel pipes, lightweight design to reduce bending moments.



3. Counter Jib

Function: Balance the load of the boom to ensure the stability of the crane.

Compose:

Counterweight: Concrete or cast iron block, the weight is calculated to match the maximum lifting capacity.

Lifting mechanism: usually installed on the balance arm, including the winch and wire rope.



4. Slewing Unit

Function: Drive the boom and balance arm to rotate horizontally (usually 360° unrestricted rotation).

Compose:

Slewing Ring: Large bearing connects the top of the tower to the boom.

Motor and reducer: provide slewing power.



5. Apex  OR Cat Head

Function: Connect the crane arm, balance arm and tower body to support the slewing mechanism.

Hammer head features: The top of the tower is fixed, and the boom rotates to form a "hammer" appearance.



6. Hoisting System

Function: Control the lifting of the hook.

Compose:

Winches: provide power, wind wire ropes.

Wire rope and pulley block: transmits power to the hook.

Hook: Suspended load.



7. Operator's Cab

Location: Usually located under the boom or on the side of the tower, providing a panoramic view.

Function: The operator controls the operation of the crane and is equipped with electronic monitoring systems (e.g. load limiter, amplitude indicator).



8. Base/Foundation

Function: Transfer the crane load to the ground.

Type:

Fixed foundation: concrete block embedded anchor bolts.

Mobile foundations: rare, requires special design.



9. Safety Devices

Must-have devices:

Torque limiter (to prevent overload)

Lifting height limiter

Slewing limiter

Anemometer (High Wind Speed Alarm)



10. Attachment system (optional, for high-rise buildings)

Function: The tower body is connected to the building by attaching wall rods to increase stability.

Spacing: Usually set every 20~40 meters.





Stable structure: The hammer head design reduces the bending moment of the tower body, which is suitable for large-span hoisting.

Wide range of operation: the horizontal arm covers a large radius (common 40~80 meters).

Modular installation: can be jacked as the building rises (with hydraulic jacking system).

Multi-working mode: support leg fixing, underframe fixing, embedded bolt fixing, exterior wall attachment and other working methods to adapt to different construction needs.

High working speed and stability: Adopt frequency conversion stepless speed regulation scheme to ensure stable and reliable work.

Superior visibility and operating environment: The driver's cab is independent and external, with a wide field of vision and large internal space, providing a good working environment.

Safety & Reliability Advanced electrical control system: PLC control to improve reliability and safety.

Durable electrical components: the introduction of foreign advanced technology to produce electrical components, the service life is 3~4 times longer than that of domestic components, less failures, simple maintenance.

Applicability of a wide range of application scenarios: suitable for a variety of construction objects, including high-rise buildings, bridges, ports and other large-scale projects.

International popular design: the appearance of the whole machine is beautiful, in line with the international fashion trend.
