Construction Personnel Hoist

Han's second-hand construction hoists offer a dependable choice for vertical transportation in the construction industry, specifically engineered for personnel transport in high-rise building projects. As a renowned domestic construction machinery brand, Han elevators are celebrated for their high stability, strong safety, and excellent cost-effectiveness – making them particularly suitable for small-to-medium construction enterprises prioritizing value.

As a key player in China's engineering machinery sector, Han Construction Machinery Co., Ltd. has dedicated itself to the R&D and manufacturing of construction hoists since inception, with its products earning industry acclaim for robust structure and user-friendly operation. All second-hand Han personnel hoists originate from officially recycled equipment, undergoing rigorous technical evaluation and professional refurbishment to ensure performance meets near-new standards.

These refurbished units primarily serve vertical personnel transport needs at construction sites, placing greater emphasis on riding comfort and safety protection compared to material hoists. The ergonomic manned cabin features spacious interior, anti-slip flooring, and safety handrails to ensure secure and comfortable transit for workers.

Post-refurbishment Han hoists retain core technical advantages of original equipment while being priced 30%-50% lower than new machinery with reasonable depreciation rates – ideal for construction firms with short project cycles or limited budgets. The refurbishment process includes critical steps such as:

- Structural component inspection

- Electrical system upgrades

- Drive component replacement

Each unit comes with detailed inspection reports and remaining service life evaluation.

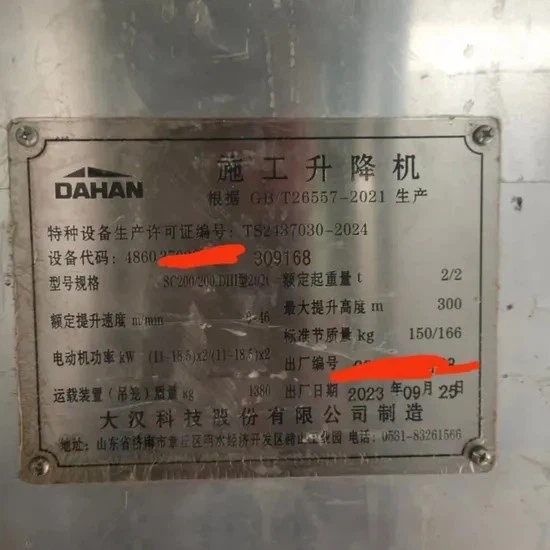

The parameters of Dahan construction hoist are as follows:

These parameters ensure the efficient and safe operation of Dahan construction hoists in high-rise buildings and other occasions that require vertical transportation.

Dahan second-hand construction personnel elevator adopts mature modular design, and the main structure has been professionally tested and replaced as necessary to ensure the reliability of long-term use. The machine consists of several key systems, each of which has undergone a rigorous refurbishment process:

The metal frame system forms the main support structure of the equipment, including components such as standard sections, chassis, rail frames, and wall attachments. Made of high-quality alloy steel, it has been tested by magnetic particle testing to ensure that there are no cracks and structural damage. The rail frame is laser calibrated, and the verticality deviation is controlled within 1/1000 to ensure smooth operation. The design of the attached wall frame is flexible, and the separation distance can be adjusted according to the characteristics of the building to enhance the overall stability.

The drive and transmission system is the core of the elevator operation, including the electric motor, reducer, coupling and braking device. Dahan's second-hand equipment adopts the original refurbished disc brake motor, with a power configuration of 2×11kW or 2×12kW, and the insulation level reaches Class F, with overheat protection function. The reducer adopts imported bearings and high-precision gears, and the transmission ratio is 1:18 to ensure smooth and efficient power transmission. The braking system is a dual design, with both electromechanical and mechanical braking, providing multiple safety guarantees.

The electrical control system is based on PLC programmable controller and is equipped with multiple safety protection devices. The system underwent a thorough inspection and necessary upgrades, including the replacement of aging cables and electrical components. The control cabinet is designed to be dustproof and moisture-proof, and most of the internal components are from well-known brands such as Schneider and Siemens to ensure long-term stable operation1. The control system functions include upper and lower limit protection, door interlock device, emergency stop button, etc., and some high-end models are also equipped with frequency conversion speed regulation function to achieve stepless speed change from 0 to 63m/min.

The safety protection system is the key refurbishment part of Dahan's second-hand lift, including the anti-fall safety device (model SAJ40-1.2), overload alarm device, rope breaking protection and emergency lowering device14. The anti-fall safety device has a speed of 1.2m/s and a rated braking load of 40kN, and all safety devices have undergone strict functional tests before the equipment leaves the factory. The car door is designed to slide up and down or ramp and is equipped with electrical and mechanical double interlocks to ensure that the equipment cannot be operated when the door is not closed.

The car system is optimized for the transport of people and is typically 3.2×1.5×2.25m (L×W×H) in size and has an internal space of 12-16 people. The cage floor is made of non-slip steel plate or glass fiber reinforced plastic grille, which has the advantages of light weight, high strength and corrosion resistance. The height of the fence meets the safety standards, and there is a protective shed at the top, surrounded by a mesh structure, which not only ensures safety but also does not affect the view. Some models of the car are hot-dip galvanized or specially anti-corrosion coating, suitable for use in high humidity or coastal areas.

Dahan second-hand construction personnel lifts have been professionally refurbished with a number of outstanding features that make it excellent in terms of cost performance, safety and applicability:

1. Enhanced personnel safety and security system: safety equipment designed for personnel transportation, including dual braking system, instantaneous fall arrest safety device, emergency lighting and communication device. The cage structure is reinforced, the sidewalls are impact-resistant, and the top shelter is resistant to falling objects. The equipment is equipped with an intelligent weight detection system, which automatically alarms and prohibits operation when overloaded, eliminating the risk of overload from the source.

2. Smooth and comfortable riding experience: The transmission system adopts high-precision rack and pinion matching, and the operating noise is less than 75 decibels. The frequency conversion control model realizes stepless speed regulation, starts and stops more smoothly, and reduces personnel discomfort. The interior space of the car is optimized with a clear height of more than 2.2 meters to avoid a sense of depression, and it is equipped with handrails and emergency call buttons to enhance the sense of safety of passengers.

3. Energy-efficient performance: The efficiency of the refurbished drive system is restored to more than 90% of that of the new machine, and the energy consumption is 10-15% lower than that of similar products. Models such as SCD200/200 with double cage design can realize the separate transportation of personnel and materials, which greatly improves the construction efficiency. The optimized control system has a fast response time, high leveling accuracy, and reduced waiting time.

4. Economical total cost of ownership: 40-60% reduction in acquisition costs compared to new machines, while performance recovery to more than 85% of new machines. The modular design makes it easy to replace key components and low maintenance costs. Wearing parts have been replaced during refurbishment, and the follow-up maintenance interval is long, further reducing the cost of use.

5. Strong environmental adaptability: the structural parts are treated with special anti-corrosion, and hot-dip galvanizing or spraying paint can be selected to adapt to harsh environments such as humidity and salt spray. The wide voltage design of the electrical system works stably within the range of 380V±10% and adapts to the voltage fluctuation of the construction site. Some models can operate in ambient temperatures from -20°C to 50°C.

6. Flexible configuration options: single cage (SC200) and double cage (SC200/200) are available in two basic configurations, and the size of the car can be customized according to the needs. The standard section connection adopts high-strength bolts, which is easy to install and disassemble. The spacing of the attached wall frame can be adjusted according to the characteristics of the building, and the maximum free end height is 9 meters, which is suitable for different construction scenarios.

7. Intelligent monitoring and maintenance reminder: High-end refurbished models can be equipped with an optional IoT monitoring system to collect operating data in real time, monitor equipment status, and warn potential failures in advance. The system can record parameters such as operating time, load changes, and safety device status, and generate maintenance plans to achieve preventive maintenance

With its reliability and economy, Dahan second-hand construction personnel lifts are widely used in various construction scenarios:

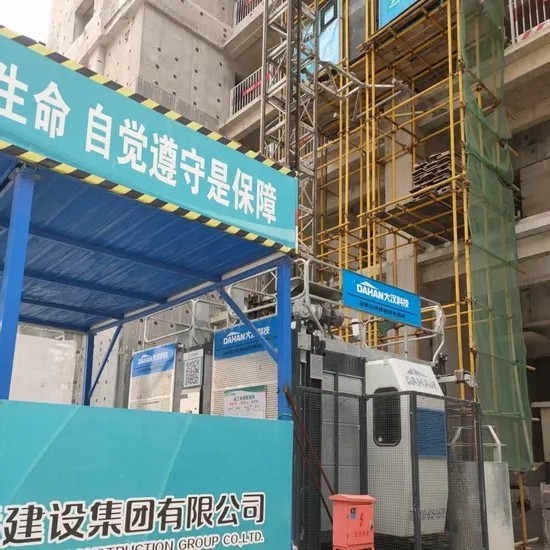

High-rise residential construction: It is the most important application field of Dahan's second-hand construction elevators, especially suitable for residential projects with 20-50 floors. The equipment can be raised as the building height increases, and the maximum lifting height can reach 200 meters. The enclosed car design ensures safe operation even in inclement weather.

Commercial complex construction: Large shopping malls, office buildings and other projects usually require multiple lifts to operate at the same time, and the high cost performance of second-hand equipment is particularly suitable for such needs. The double-cage model can effectively improve the efficiency of personnel and material transportation and shorten the construction period.

Industrial plant construction: For steel structure workshops and large-scale industrial facilities, Dahan construction hoist provides stable vertical transportation solutions. The equipment is rugged and suitable for intensive use in industrial environments.

Bridge and tunnel engineering: special types of construction hoists can be used for the construction of special structures such as bridge towers and tunnel shafts, providing safe and reliable transportation of personnel and materials.

Construction of power plants and chemical plants: For special industrial environments, explosion-proof second-hand construction hoists can be provided to meet the needs of operations in hazardous areas.

Decoration and maintenance engineering: building façade decoration, glass curtain wall installation, high-altitude equipment maintenance and other operations, second-hand construction hoists provide cost-effective solutions.

In addition, Dahan second-hand construction lifts are also widely used in the construction of large public facilities such as airport construction, stadiums, subway stations, etc., and their reliability and economy have been recognized by the majority of construction units.

We provide comprehensive after-sales service and technical support for Dahan second-hand construction hoists to eliminate customers' worries:

Professional testing and certification: Each second-hand equipment has undergone 72 hours of continuous load test before leaving the factory.

Rapid response mechanism: Commitment to respond within 24 hours, regular parts delivery service.

Technical training: Provide free operation and maintenance training, including equipment construction principles, daily inspection points, troubleshooting methods, etc.

Remote technical support: Provide round-the-clock technical consultation and fault diagnosis services through customer service hotlines and online support platforms.

Our company's perfect after-sales service system ensures that Dahan second-hand construction hoists can maintain the best working condition throughout the life cycle and create maximum value for customers. Contact us today to provide you with an exclusive quote and solution!
