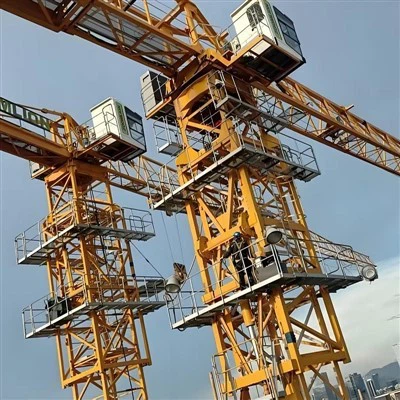

Dahan Tower Crane

The "Dahan" brand tower crane utilizes Q345C manganese steel single-angle sections for primary support structures, delivering exceptional environmental adaptability while reducing long-distance transportation costs. Standard segments are precision-manufactured with dedicated CNC machining equipment, guaranteeing high connection accuracy and simplified installation.

Featuring an aluminum alloy ladder system with inclined steps for safer climbing, each section enables effortless disassembly. Advanced mechanical and electronic control designs achieve breakthrough improvements in operational comfort and safety.

Medium-to-large models incorporate frequency conversion control, enabling stepless speed regulation for hoisting, slewing, and luffing operations. This significantly reduces impact loads on mechanisms, effectively minimizes stress amplitude in tower body standard sections (particularly), and substantially extends fatigue life.

1. The main structural parts of the whole machine are made of Q345 manganese steel, and the structural size is interchangeable with the Botan structure;

2. Humanized design of working passages, installation and maintenance platforms, ladders, and driver's cabs to ensure the safety of operators.

3. The range of boom change is large, and the shortest can be changed to 30 meters

4. The balance arm can also be adjusted according to the change of arm length, which can better adapt to the site conditions of the construction site;

5. The magnification rate of the double trolley can be quickly doubled in the construction of high-rise buildings to meet the requirements of different heavy loads;

6. The 7.5-meter foundation section makes the installation and disassembly more convenient and safer to use.

The specific models are:

QTZ25/QTZ31.5/QTZ40/QTZ50/QTZ63/QTZ80/QTZ100/QTZ125/QTZ160 etc .

This tower crane complies with European CE safety standards, featuring stepless frequency conversion control systems for both hoisting and luffing operations. Compared to conventional Yaskawa inverters, the new inverters are more compact and incorporate built-in micro-programmable logic controllers (PLCs) for enhanced precision and advanced performance. Additionally, the crane is equipped with Mitsubishi PLCs, Schneider contactors, and circuit breakers, ensuring smooth and stable operation. This significantly reduces mechanical vibration and grid interference while boosting operational efficiency.

High-capacity models utilize DC motors for slewing functions, offering wide speed regulation range, rapid response, strong overload capacity, and consistent rated torque from zero to full speed. Traditional cranes using RCV or frequency conversion for slewing suffer from slow response, large positioning errors, and post-stop boom rebound. Our solution employs Parker DC drives from the USA to achieve swift, smooth starting/stopping and precise positioning, substantially improving productivity. Four slewing DC motors work in tandem to enhance lifting positioning accuracy.

The hoisting mechanism integrates intelligent protection: automatic shutdown activates when gear speed deviates from frequency command, detecting unauthorized automated operation to prevent hook free-fall accidents, ensuring safety and reliability. An integrated slip ring eliminates the need for rotation limiters, enabling unrestricted 360° slewing and eliminating cable entanglement risks for secure, efficient operation.

Modular electrical cabinets feature plug-and-play installation for swift, stable on-site wiring, significantly reducing setup time. The integrated design combines mechanical assemblies, control cabinets, and resistors to streamline installation. The operator's cabin utilizes the original "Da Han" brand, offering spaciousness, ergonomic comfort, and a sleek exterior design.

We are committed to providing customers with the best quality products and services, and our company's tower crane is your best choice!
